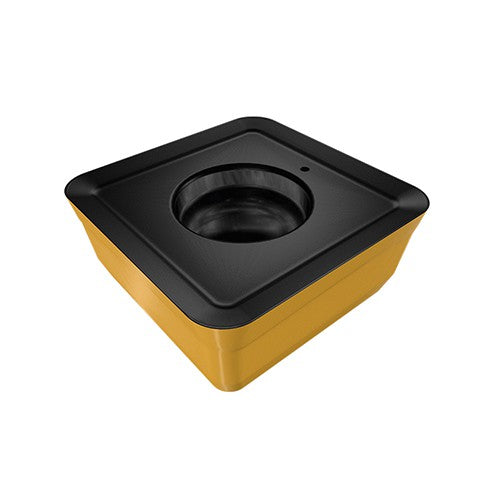

FFQ4 SOMT 0904RM-HP IC882
Item #: EH563356595
Brand: Iscar
Model #: 3356595
| Product Specifications | |
|---|---|
| Applicable Material | | Stainless Steel | Hi Temp Alloys | |
| Grade | IC882 |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Milling Inserts | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Maximum Feed per Tooth (fz(max)) | 0.059 ″/tooth |
| Cutting Edge Length (L) | 0.339″ |
| Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.0472″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.039″ |
| Minimum Feed per Tooth (fz(min)) | 0.0157 ″/tooth |
| Insert Thickness (S) | 0.15″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 90 Degrees |
| Body Material | Carbide |
| Coating | AlTiN+TiAlSiN+TiSiN |
