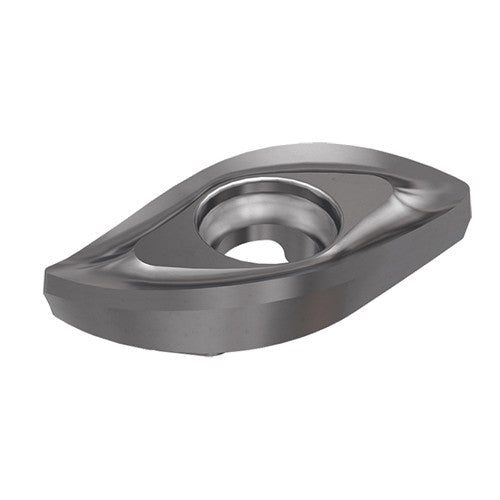

BCR D200-CC IC808
Item #: EH563354427
Brand: Iscar
Model #: 3354427
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Application | | Drill Mill | Helical Interpolation | Milling Inserts | Plunging & Recessing | Profiling | Rampdown | |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Length (L) | 17 mm |
| Cutting Edge Material | Carbide |
| Insert Length (INSL) | 17 mm |
| Tool Type | Single sided Inserts |
| Corner Radius (RE) | 10 mm |
| Minimum Feed per Tooth (fz(min)) | 0.2 mm/tooth |
| Insert Width (W1) | 9.2 mm |
| Number of Cutting Edges | 2 |
| Insert Thickness (S) | 3.6 mm |
| Measurement Type | Metric |
| Coating | TiAlN+AlTiN+TiN |
| Body Material | Carbide |
| Grade | IC808 |
