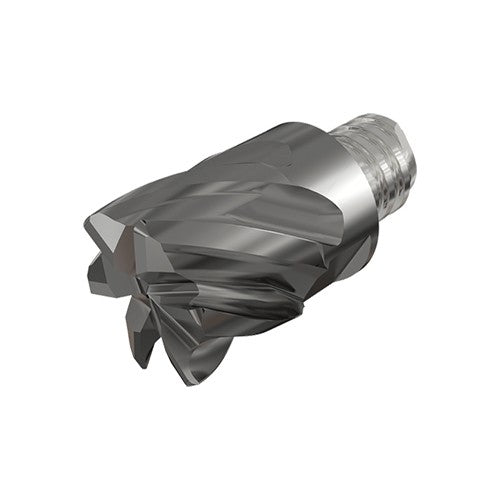

MM ECK125H1.5R060-5T21 IC908
Item #: EH563346374
Brand: Iscar
Model #: 3346374
| Product Specifications | |
|---|---|
| Application | | Helical Interpolation | Rampdown | Shouldering | |
| Grade | IC908 |
| Cutting Diameter (DC) | 1-1/4″ |
| Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 5 |
| Measurement Type | Inch |
| Corner Radius (RE) | 0.06″ |
| fz(max) | 0.007 ″/tooth |
| Connection Thread Nominal Size Machine Side (THSZMS) | T21 |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 1-1/2″ |
| Ramping Angle Maximum (RMPX) | 1.5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1.181″ |
| Tool Type | Solid carbide non center cutting endmills 90° |
| Functional Length (LF) | 2.165″ |
| Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees |
| Connection Code Machine Side (CCMS) | MultiMaster |
