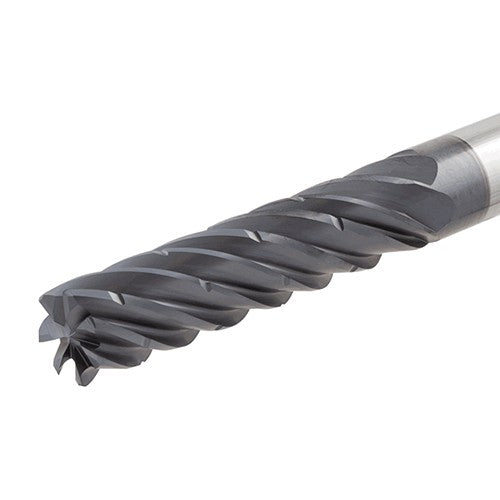

ECP-H7 16-48C16CFR3.0-110 IC902
Item #: EH563344116
Brand: Iscar
Model #: 3344116
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 16 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Application | | Counter Boring | Plunging & Recessing | Shouldering | |
| Depth of Cut Maximum (APMX) | 48 mm |
| Corner Radius (RE) | 3 mm |
| Overall Length (OAL) | 110 mm |
| Ramping Angle Maximum (RMPX) | 3 Degrees |
| Cutting Edge Material | Carbide |
| Grade | IC902 |
| Coating | TiAlN |
| Maximum Feed per Tooth (fz(max)) | 0.13 mm/tooth |
| Flute Count (NOF) | 7 |
| Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Flute Helix Angle (FHA) | 36 Degrees |
| Body Material | Carbide |
| Shank Type | Round |
| Measurement Type | Metric |
| End Shape | Corner Radius |
| Connection Code Machine Side (CCMS) | Cylindrical |
