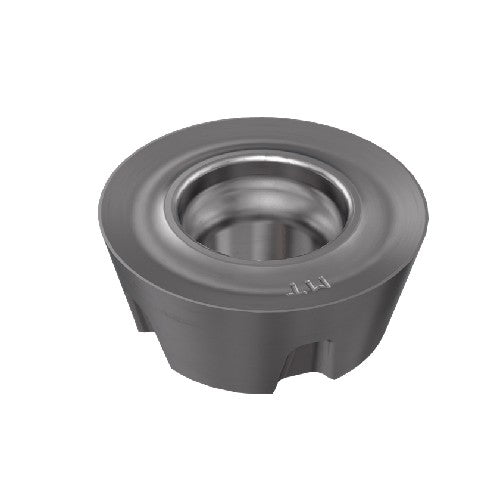

RPHX 1204M0-HT5 IC5500
Item #: EH563342366
Brand: Iscar
Model #: 3342366
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | |
| Cutting Direction (HAND) | Neutral |
| Application | | Facing | Milling Inserts | Profiling | Rampdown | |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.2362″ |
| Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Thickness (S) | 0.188″ |
| Number of Cutting Edges | 5 |
| Coating | TiCN+Al2O3+TiN |
| Measurement Type | Inch |
| Grade | IC5500 |
| Body Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.0157 ″/tooth |
