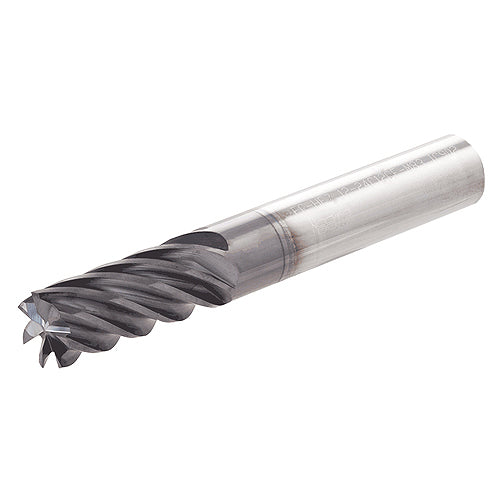

EC-H7 12-48SL12CF-110 IC902
Item #: EH563338862
Brand: Iscar
Model #: 3338862
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 12 mm |
| Application | Finishing | Shouldering |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Corner Chamfer Width (CHW) | 0.3 mm |
| Depth of Cut Maximum (APMX) | 48 mm |
| Ramping Angle Maximum (RMPX) | 3 Degrees |
| Overall Length (OAL) | 110 mm |
| Grade | IC902 |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide non center cutting endmills 90 Degrees |
| Coating | TiAlN |
| Maximum Feed per Tooth (fz(max)) | 0.12 mm/tooth |
| Flute Count (NOF) | 7 |
| Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
| Flute Helix Angle (FHA) | 37 Degrees |
| Body Material | Carbide |
| Shank Type | SL |
| Measurement Type | Metric |
| End Shape | Chamfer |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
