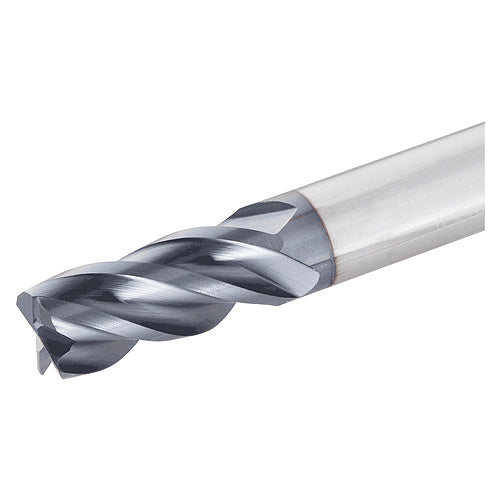

ECKI-H4R 500-1.0SL500C IC900
Item #: EH563338799
Brand: Iscar
Model #: 3338799
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Corner Radius (RE) | 0.023″ |
| Depth of Cut Maximum (APMX) | 1″ |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 3″ |
| Grade | IC900 |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide center cutting endmills 90° |
| Coating | AlTiN |
| Maximum Feed per Tooth (fz(max)) | 0.0031 ″/tooth |
| Flute Count (NOF) | 4 |
| Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Shank Type | SL |
| Coolant Supply Property (CSP) | Coolant Thru |
| End Shape | Corner Radius |
| Measurement Type | Inch |
| Applicable Material | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
