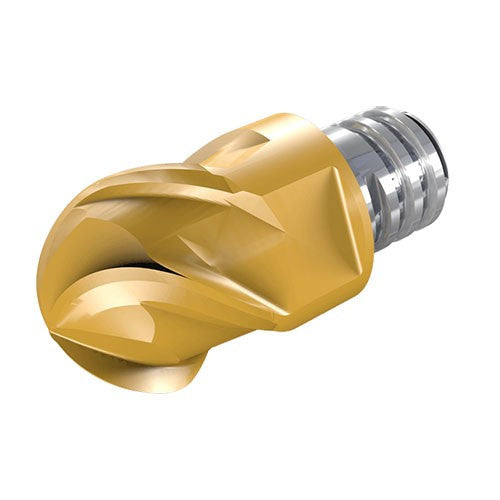

MM EBC.750B62-4T12CF IC903
Item #: EH563326626
Brand: Iscar
Model #: 3326626
| Product Specifications | |
|---|---|
| Application | | Profiling | |
| Overall Length (OAL) | 1.543″ |
| Cutting Diameter (DC) | 3/4″ |
| Grade | IC903 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Coating | TiAlN |
| Flute Count (NOF) | 4 |
| Coolant Supply Property (CSP) | External |
| Corner Radius (RE) | 3/8″ |
| Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T12 |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.62″ |
| Tool Type | Solid ball nose |
| Connection Diameter Machine Side (DCONMS) | 0.73″ |
| Body Material | Carbide |
| Functional Length (LF) | 1″ |
| Connection Code Machine Side (CCMS) | MultiMaster |
| Flute Helix Angle (FHA) | 45 Degrees |
