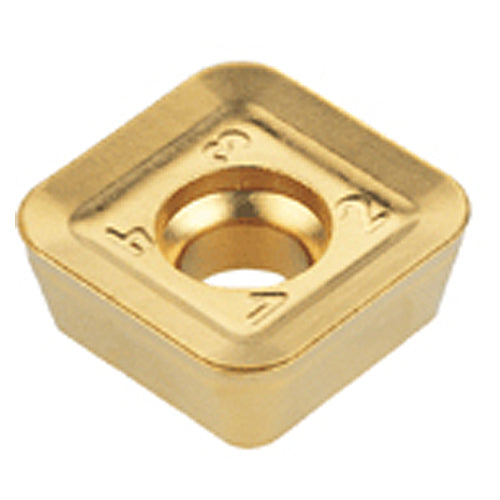

QDMT 1205PDN-RM IC330
Item #: EH563324773
Brand: Iscar
Model #: 3324773
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Grade | IC330 |
| Application | | Bottom Shouldering | Milling Inserts | Shouldering | Side Slotting | Slotting | T Slotting | |
| Shape | Square |
| Insert Length (INSL) | 1/2″ |
| Maximum Feed per Tooth (fz(max)) | 0.0071 ″/tooth |
| Corner Radius (RE) | 0.0315″ |
| Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.197″ |
| Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Included Angle (EPSR) | 90 Degrees |
| Measurement Type | Inch |
| Coating | TiCN+TiN |
| Body Material | Carbide |
