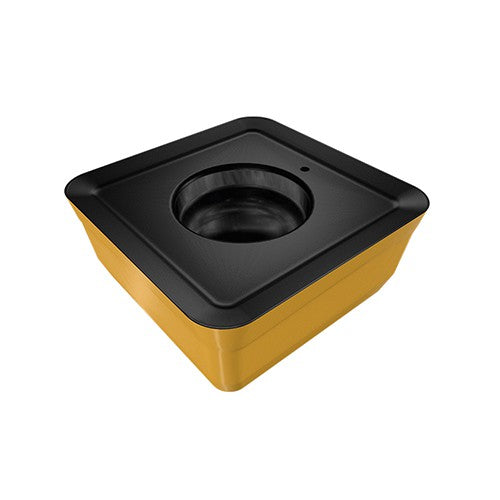

FFQ4 SOMT 170625HP IC808
Item #: EH563323583
Brand: Iscar
Model #: 3323583
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Maximum Feed per Tooth (fz(max)) | 0.059 ″/tooth |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Milling Inserts | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Cutting Direction (HAND) | Neutral |
| Cutting Edge Length (L) | 0.689″ |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0984″ |
| Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.236″ |
| Minimum Feed per Tooth (fz(min)) | 0.0157 ″/tooth |
| Insert Included Angle (EPSR) | 90 Degrees |
| Number of Cutting Edges | 4 |
| Coating | TiAlN+AlTiN+TiN |
| Measurement Type | Inch |
| Grade | IC808 |
| Body Material | Carbide |
