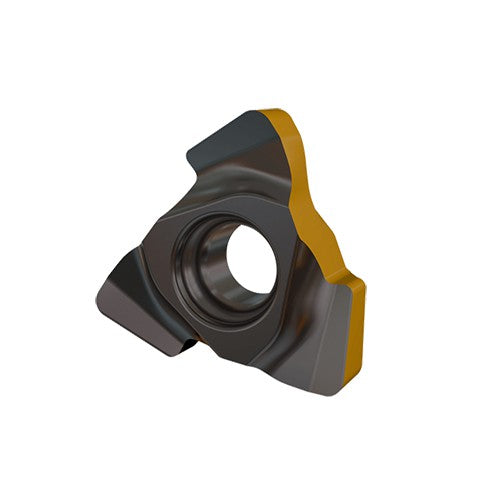

TR90 TXMT 070204 IC808
Item #: EH563320925
Brand: Iscar
Model #: 3320925
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Application | | Facing | Milling Inserts | Rampdown | Shouldering | |
| Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0157″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.0984″ |
| Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Inscribed Circle Diameter (IC) | 0.209″ |
| Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.094″ |
| Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiN |
| Body Material | Carbide |
| Grade | IC808 |
