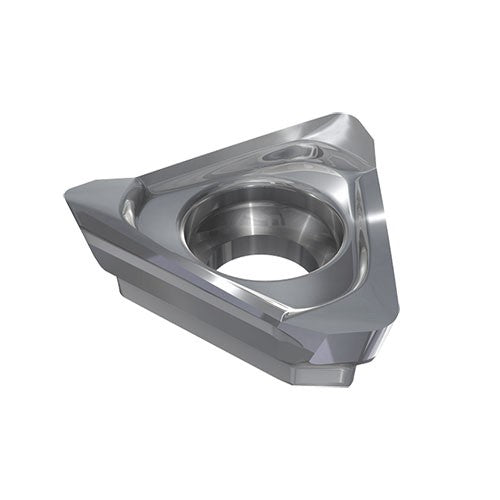

HM390 TDCR 150540PDFR-P IC28
Item #: EH563318083
Brand: Iscar
Model #: 3318083
| Product Specifications | |
|---|---|
| Applicable Material | | Non Ferrous Metals | |
| Coating | Uncoated |
| Application | | Facing | Helical Interpolation | Milling Inserts | Rampdown | Shouldering | Slotting | |
| Grade | IC28 |
| Insert Length (INSL) | 0.551″ |
| Shape | 60° Triangle |
| Corner Radius (RE) | 0.1575″ |
| Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.5118″ |
| Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.449″ |
| Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.236″ |
| Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Wiper Edge Length (BS) | 0.028″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees |
| Body Material | Carbide |
