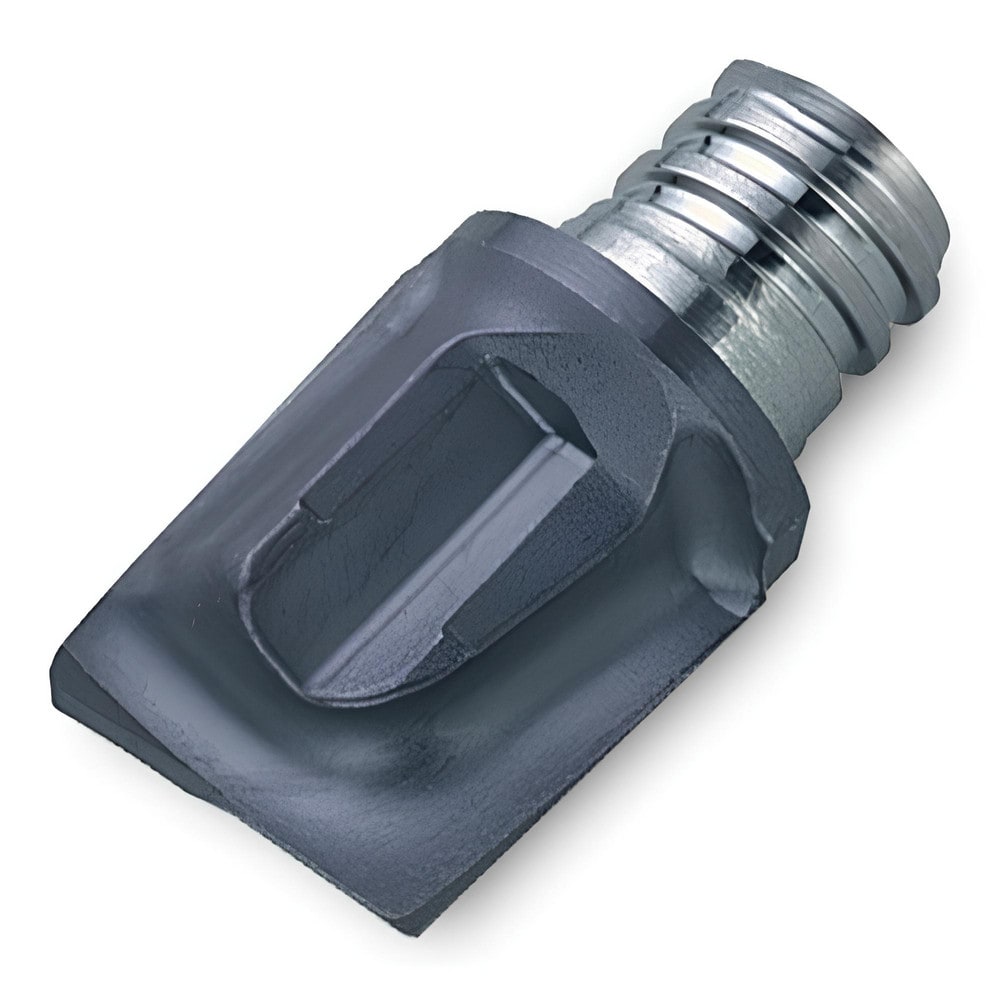

Brand: Ingersoll Cutting Tools / Part #: 5840611
Item #: 02798908
Brand: Ingersoll Cutting Tools
Model #: 5840611
Product Specifications
| Milling Tip Type | Drill |
| Milling Tip Style | 45D |
| Maximum Depth of Cut (Decimal Inch) | 0.4500 |
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Tool Material | Carbide |
| Manufacturer Grade | IN2005 |
| Insert Hand | Right Hand |
| Chipbreaker | None |
| Series | 45D |
| Coating Process | PVD |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Thread Size | T08 |
| Lead Angle | 90 |
| Manufacturers Catalog Number | 45D-5045T8RA01 |
| Overall Length (Decimal Inch) | 0.6000 |
| Helix Angle | 10 |
| Coolant Through | No |
| Included Angle Degree | 90 |
| Depth Of Cut | 0.4500 |
| Coating/Finish | TiAlN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.6000 |
| Number Of Flutes | 2 |
