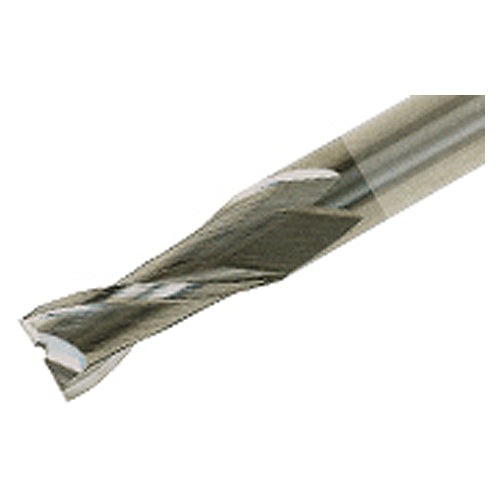

EC180A32-2C18 IC08
Item #: EH5620016
Brand: Iscar
Model #: 5620016
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 18 mm |
| Applicable Material | | Non Ferrous Metals | |
| Connection Diameter Machine Side (DCONMS) | 18 mm |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Depth of Cut Maximum (APMX) | 32 mm |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 92 mm |
| Grade | IC08 |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide center cutting endmills 90° |
| Coating | Uncoated |
| Maximum Feed per Tooth (fz(max)) | 0.13 mm/tooth |
| Flute Count (NOF) | 2 |
| Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Flute Helix Angle (FHA) | 30 Degrees |
| Body Material | Carbide |
| Shank Type | Round |
| Measurement Type | Metric |
| End Shape | Square |
| Connection Code Machine Side (CCMS) | Cylindrical |
