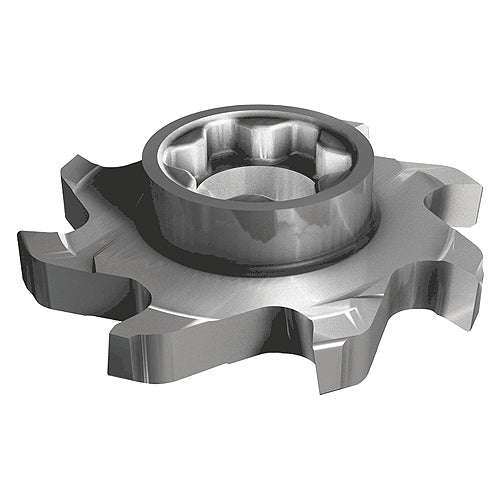

SD D1.25-H187D-SP15 IC908
Item #: EH5607646
Brand: Iscar
Model #: 5607646
| Product Specifications | |
|---|---|
| Application | | Internal Groove Milling | Side Slotting | T Slotting | |
| Grade | IC908 |
| Cutting Diameter (DC) | 1.238″ |
| Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Fixing Hole Diameter (D1) | 0.33″ |
| Flute Count (NOF) | 8 |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Corner Radius (RE) | 0.016″ |
| Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.315″ |
| Cutting Edge Material | Carbide |
| Cutting Width (CW) | 0.187″ |
| Tool Type | Solid "T" slot cutters |
| Connection Diameter Machine Side (DCONMS) | 0.591″ |
| Body Material | Carbide |
| Overall Length (OAL) | 0.315″ |
