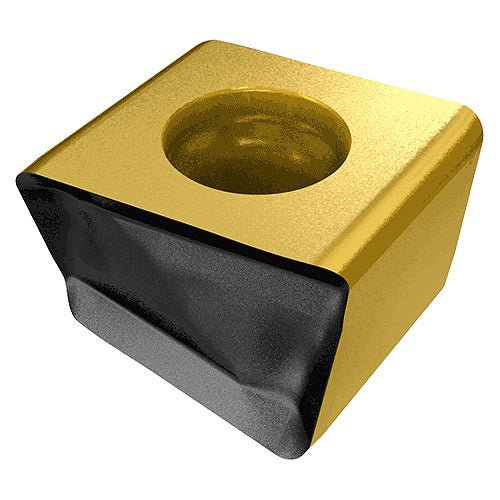

HTP LNMT 0604 ER IC808
Item #: EH5607380
Brand: Iscar
Model #: 5607380
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Shape | 90° Rectangular |
| Application | | Facing | Milling Inserts | Shouldering | Side Plunging | |
| Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Insert Length (INSL) | 0.256″ |
| Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0236″ |
| Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.16″ |
| Tool Type | Mill Tangential Inserts |
| Insert Thickness (S) | 0.269″ |
| Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Coating | TiAlN+AlTiN+TiN |
| Measurement Type | Inch |
| Grade | IC808 |
| Body Material | Carbide |
