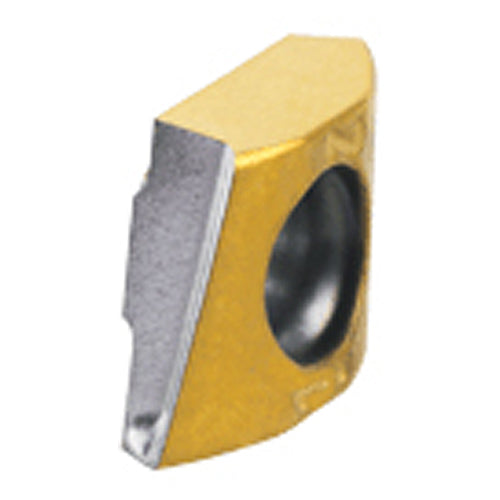

T290 LNHT 050202TR IC808
Item #: EH5607272
Brand: Iscar
Model #: 5607272
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Shape | 90° Rectangular |
| Application | | Counter Boring | Countersinking | Facing | Milling Inserts | Shouldering | Slanted Shoulder & Chamfer | Slotting | |
| Maximum Feed per Tooth (fz(max)) | 0.0028 ″/tooth |
| Insert Length (INSL) | 0.226″ |
| Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.008″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.197″ |
| Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.106″ |
| Minimum Feed per Tooth (fz(min)) | 0.0012 ″/tooth |
| Insert Thickness (S) | 0.23″ |
| Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiN |
| Body Material | Carbide |
| Grade | IC808 |
