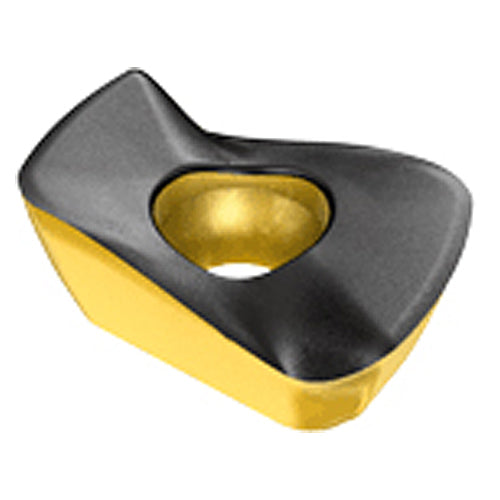

APKT 1003R8T-FF IC808
Item #: EH5606908
Brand: Iscar
Model #: 5606908
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Grade | IC808 |
| Application | | Facing | Fast Feed Milling | Milling Inserts | Rampdown | |
| Shape | 85° Parallelogram |
| Cutting Edge Length (L) | 0.425″ |
| Maximum Feed per Tooth (fz(max)) | 0.059 ″/tooth |
| Insert Length (INSL) | 0.425″ |
| Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0748″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.039″ |
| Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.26″ |
| Minimum Feed per Tooth (fz(min)) | 0.0197 ″/tooth |
| Insert Thickness (S) | 0.138″ |
| Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiN |
| Body Material | Carbide |
