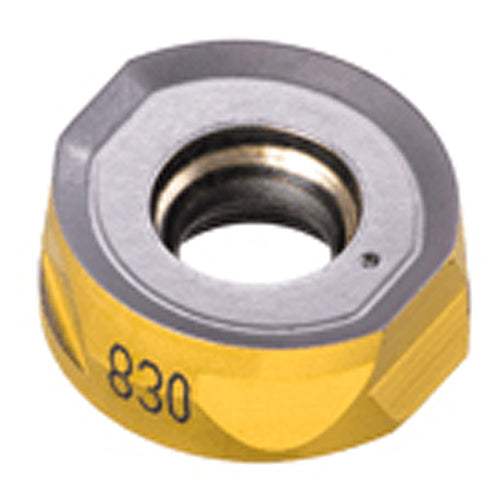

H400 RNHU 1004-AX IC830
Item #: EH5606804
Brand: Iscar
Model #: 5606804
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Grade | IC830 |
| Application | | Facing | Helical Interpolation | Milling Inserts | Profiling | Rampdown | |
| Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |
| Insert Length (INSL) | 0.362″ |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.1969″ |
| Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 0.295″ |
| Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Width (W1) | 0.366″ |
| Measurement Type | Inch |
| Insert Thickness (S) | 0.185″ |
| Body Material | Carbide |
| Coating | AlTiN+TiN |
