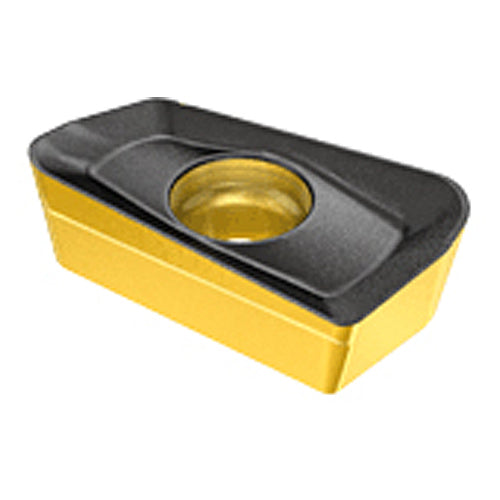

HP ANKT 0702 PN-R
Item #: EH5606596
Brand: Iscar
Model #: 5606596
| Product Specifications | |
|---|---|
| Applicable Material | Steel|Stainless Steel|Hi-Temp Alloys |
| Coating | TiCN|TiN |
| Cutting Edge Length (L) | 0.343″ |
| Grade | IC330 |
| Corner Radius (RE) | 0.02″ |
| Shape | 85° Parallelogram |
| Depth of Cut Maximum (APMX) | 0.303″ |
| Maximum Feed per Tooth (fz(max)) | 0.0039 inch/tooth |
| Insert Width (W1) | 0.177″ |
| Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.102″ |
| Tool Type | Single sided Inserts |
| Wiper Edge Length (BS) | 0.051″ |
| Minimum Feed per Tooth (fz(min)) | 0.0024 inch/tooth |
