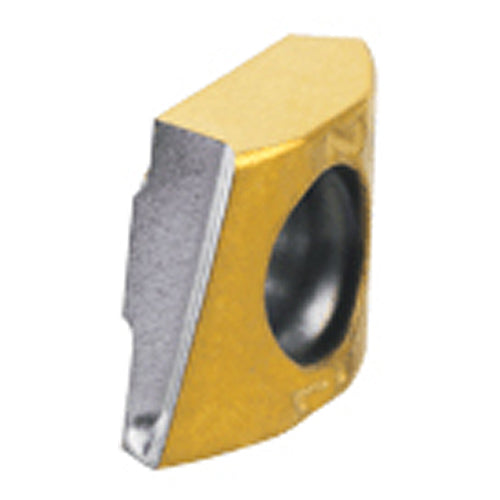

T290 LNMT 050204TR
Item #: EH5606317
Brand: Iscar
Model #: 5606317
| Product Specifications | |
|---|---|
| Applicable Material | Steel|Cast Iron |
| Coating | TiCN|Al2O3 |
| Cutting Edge Length (L) | 0.226″ |
| Grade | IC5100 |
| Corner Radius (RE) | 0.016″ |
| Shape | 90° Rectangular |
| Depth of Cut Maximum (APMX) | 0.197″ |
| Maximum Feed per Tooth (fz(max)) | 0.0031 inch/tooth |
| Insert Width (W1) | 0.106″ |
| Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.23″ |
| Tool Type | Mill Tangential Inserts |
| Wiper Edge Length (BS) | 0.039″ |
| Minimum Feed per Tooth (fz(min)) | 0.0016 inch/tooth |
