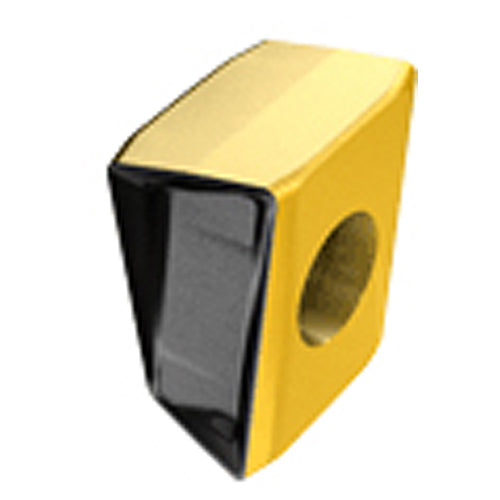

T490 LNMT 0804PNR IC810
Item #: EH5606107
Brand: Iscar
Model #: 5606107
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Cast Iron | |
| Grade | IC810 |
| Application | | Facing | Milling Inserts | Shouldering | Slotting | |
| Shape | 90° Rectangular |
| Insert Length (INSL) | 0.338″ |
| Maximum Feed per Tooth (fz(max)) | 0.0071 ″/tooth |
| Corner Radius (RE) | 0.0157″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.315″ |
| Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.167″ |
| Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Thickness (S) | 0.293″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 90 Degrees |
| Body Material | Carbide |
| Coating | AlTiCrN+TiN |
