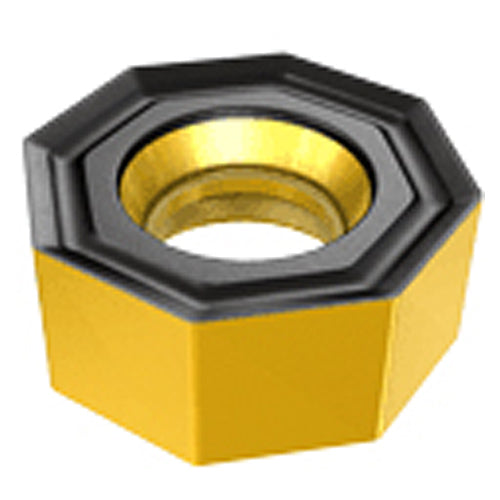

ONMU 050505-TN DT7150
Item #: EH5606052
Brand: Iscar
Model #: 5606052
| Product Specifications | |
|---|---|
| Applicable Material | | Cast Iron | Hard Materials | |
| Shape | 135° Octagon |
| Application | | Facing | Milling Inserts | Slanted Shoulder & Chamfer | |
| Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |
| Corner Radius (RE) | 0.0197″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.138″ |
| Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.2″ |
| Minimum Feed per Tooth (fz(min)) | 0.0079 ″/tooth |
| Insert Included Angle (EPSR) | 135 Degrees |
| Measurement Type | Inch |
| Coating | MTCVD Al2O3 & TiAlN PVD |
| Body Material | Carbide |
| Grade | DT7150 |
