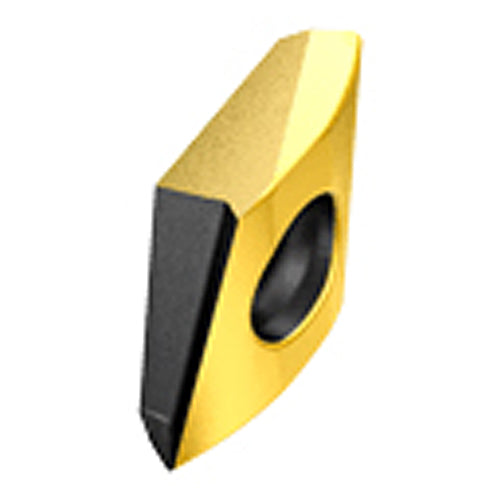

T290 LNMT 100405TR IC810
Item #: EH5606040
Brand: Iscar
Model #: 5606040
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Cast Iron | |
| Grade | IC810 |
| Application | | Counter Boring | Facing | Milling Inserts | Shouldering | Slotting | |
| Shape | 90° Rectangular |
| Insert Length (INSL) | 0.409″ |
| Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Corner Radius (RE) | 0.02″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.394″ |
| Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.161″ |
| Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Thickness (S) | 0.35″ |
| Measurement Type | Inch |
| Coating | AlTiCrN+TiN |
| Body Material | Carbide |
