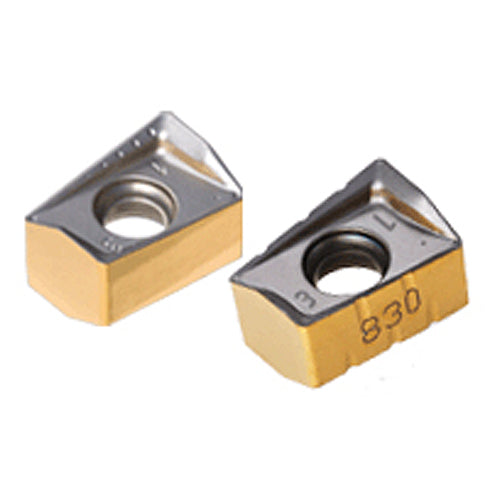

H490 ANKX 170608PNTR IC4100
Item #: EH5605451
Brand: Iscar
Model #: 5605451
| Product Specifications | |
|---|---|
| Applicable Material | | Cast Iron | Hard Materials | |
| Grade | IC4100 |
| Application | | Counter Boring | Facing | Milling Inserts | Shouldering | Slotting | |
| Shape | 85° Parallelogram |
| Insert Length (INSL) | 0.657″ |
| Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |
| Corner Radius (RE) | 0.0315″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.63″ |
| Tool Type | Double sided Inserts |
| Insert Width (W1) | 0.441″ |
| Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Thickness (S) | 0.409″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 90 Degrees |
| Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN |
