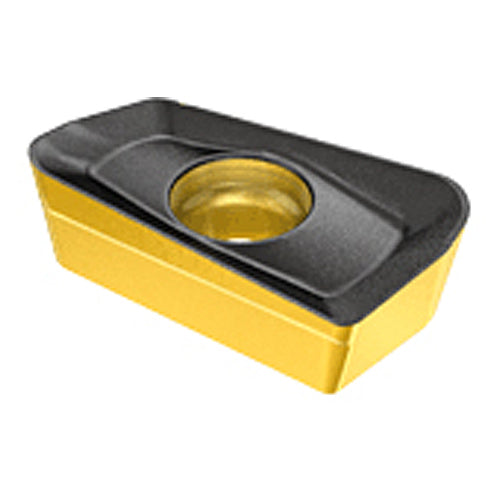

HP ANKT 0702PNTR DT7150
Item #: EH5605415
Brand: Iscar
Model #: 5605415
| Product Specifications | |
|---|---|
| Applicable Material | | Cast Iron | Hard Materials | |
| Grade | DT7150 |
| Application | | Counter Boring | Facing | Milling Inserts | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | |
| Shape | 85° Parallelogram |
| Cutting Edge Length (L) | 0.343″ |
| Maximum Feed per Tooth (fz(max)) | 0.0047 ″/tooth |
| Insert Length (INSL) | 0.343″ |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0197″ |
| Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.303″ |
| Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Width (W1) | 0.177″ |
| Cutting Edge Effective Length (LE) | 0.303″ |
| Insert Thickness (S) | 0.102″ |
| Measurement Type | Inch |
| Coating | MTCVD Al2O3 & TiAlN PVD |
| Body Material | Carbide |
