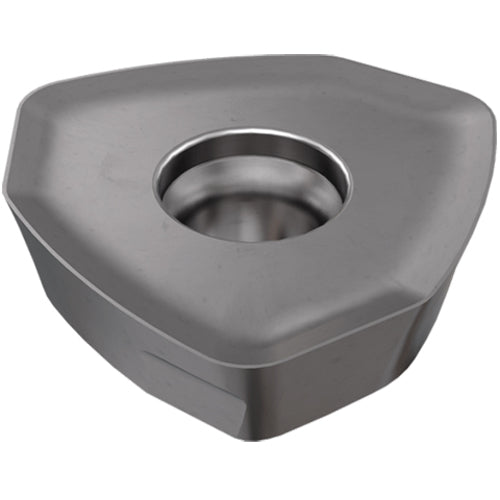

FF WOCT 060212T IC908
Item #: EH5605349
Brand: Iscar
Model #: 5605349
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Shape | 80° Trigon |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Milling Inserts | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Insert Body Diameter (INSBD) | 0.22″ |
| Insert Length (INSL) | 0.276″ |
| Maximum Feed per Tooth (fz(max)) | 0.0394 ″/tooth |
| Corner Radius (RE) | 0.079″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.039″ |
| Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.106″ |
| Minimum Feed per Tooth (fz(min)) | 0.0118 ″/tooth |
| Coating | TiAlN |
| Measurement Type | Inch |
| Grade | IC908 |
| Body Material | Carbide |
