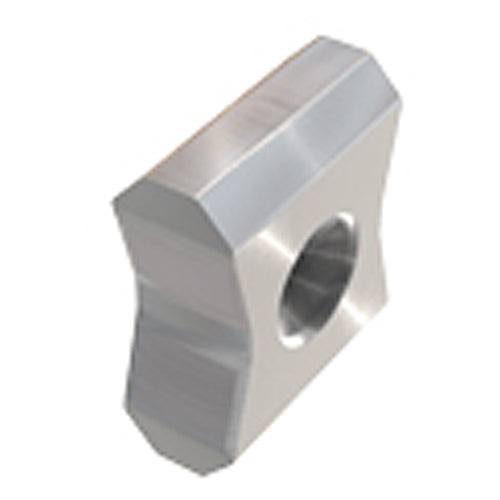

LNMW 150608 ANTN IC4100
Item #: EH5604644
Brand: Iscar
Model #: 5604644
| Product Specifications | |
|---|---|
| Applicable Material | | Cast Iron | Hard Materials | |
| Coating | TiCN+Al2O3+TiN |
| Application | | Facing | Milling Inserts | Slanted Shoulder & Chamfer | |
| Grade | IC4100 |
| Insert Length (INSL) | 0.602″ |
| Shape | 90° Rectangular |
| Corner Radius (RE) | 0.0315″ |
| Maximum Feed per Tooth (fz(max)) | 0.0157 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.295″ |
| Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.236″ |
| Tool Type | Mill Tangential Inserts |
| Insert Thickness (S) | 0.508″ |
| Minimum Feed per Tooth (fz(min)) | 0.0118 ″/tooth |
| Wiper Edge Length (BS) | 0.079″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 90 Degrees |
| Body Material | Carbide |
