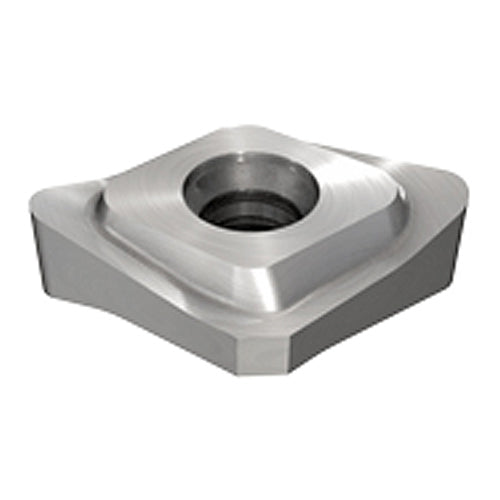

ENHT 100430 IC908
Item #: EH5604538
Brand: Iscar
Model #: 5604538
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Application | | Milling Inserts | Plunging & Recessing | Profiling | Rampdown | Shouldering | Side Plunging | Undercutting | |
| Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.1181″ |
| Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.165″ |
| Tool Type | Double sided Inserts |
| Insert Included Angle (EPSR) | 75 Degrees |
| Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Coating | TiAlN |
| Number of Cutting Edges | 4 |
| Grade | IC908 |
| Measurement Type | Inch |
| Shape | 75° Rhombic |
| Body Material | Carbide |
