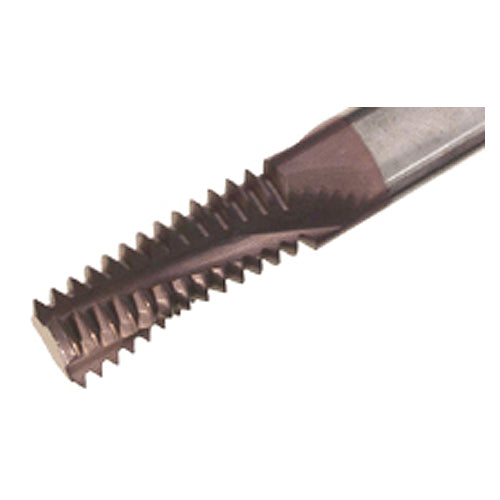

MTEC 0606C14 28UN IC908
Item #: EH5604463
Brand: Iscar
Model #: 5604463
| Product Specifications | |
|---|---|
| Thread Pitch (TP) | 0.907 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Threads per Inch (TPI) | 28 Threads/" |
| Cutting Edge Material | Carbide |
| Thread Standard | UNEF |THFT | |
| Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Measurement Type | Metric |
| Cutting Diameter (DC) | 6 mm |
| Grade | IC908 |
| Overall Length (OAL) | 57 mm |
| Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 3 |
| Depth of Cut Maximum (APMX) | 14.5 mm |
| Shank Type | Round |
| Body Material | Carbide |
| Coating | TiAlN |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Internal Thread Milling | |
| Thread Form Type (THFT) | UN60 |
