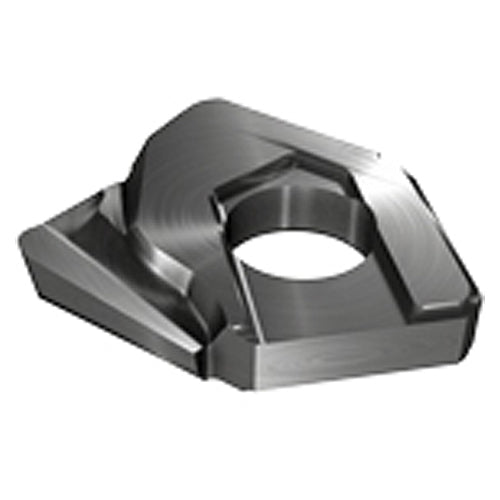

HCC D120-R1.0-QF IC908
Item #: EH5604389
Brand: Iscar
Model #: 5604389
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Application | | Counter Boring | Drill Mill | Milling Inserts | Shouldering | Slotting | |
| Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 1 mm |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 8.1 mm |
| Tool Type | Single sided Inserts |
| Insert Width (W1) | 12 mm |
| Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Insert Thickness (S) | 2.6 mm |
| Number of Cutting Edges | 2 |
| Insert Included Angle (EPSR) | 90 Degrees |
| Cutting Edge Effective Length (LE) | 8.1 mm |
| Coating | TiAlN |
| Measurement Type | Metric |
| Grade | IC908 |
| Body Material | Carbide |
| Shape | 120° Hexagon |
