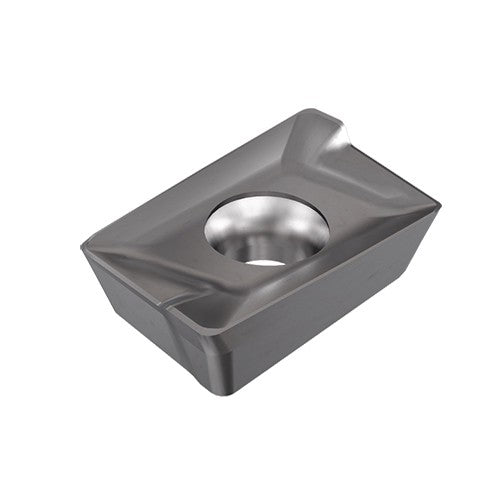

APKT 1003PDTR-76 IC4010
Item #: EH5603824
Brand: Iscar
Model #: 5603824
| Product Specifications | |
|---|---|
| Applicable Material | | Cast Iron | |
| Grade | IC4010 |
| Application | | Countersinking | Drill Mill | Facing | Milling Inserts | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | |
| Shape | 85° Parallelogram |
| Cutting Edge Length (L) | 0.433″ |
| Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Insert Length (INSL) | 0.433″ |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0197″ |
| Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.315″ |
| Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Width (W1) | 0.264″ |
| Cutting Edge Effective Length (LE) | 0.386″ |
| Insert Thickness (S) | 0.137″ |
| Measurement Type | Inch |
| Coating | TiCN + Al2O3 + TiN |
| Body Material | Carbide |
