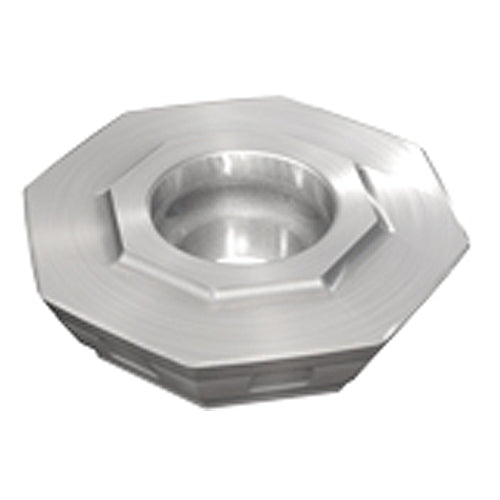

OFMW 07T3-AETN IC908
Item #: EH5603734
Brand: Iscar
Model #: 5603734
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Shape | 135° Octagon |
| Application | | Facing | Helical Interpolation | Milling Inserts | Rampdown | Slanted Shoulder & Chamfer | |
| Maximum Feed per Tooth (fz(max)) | 0.0138 ″/tooth |
| Corner Radius (RE) | 0.0394″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.157″ |
| Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.179″ |
| Minimum Feed per Tooth (fz(min)) | 0.0079 ″/tooth |
| Insert Included Angle (EPSR) | 135 Degrees |
| Measurement Type | Inch |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | IC908 |
