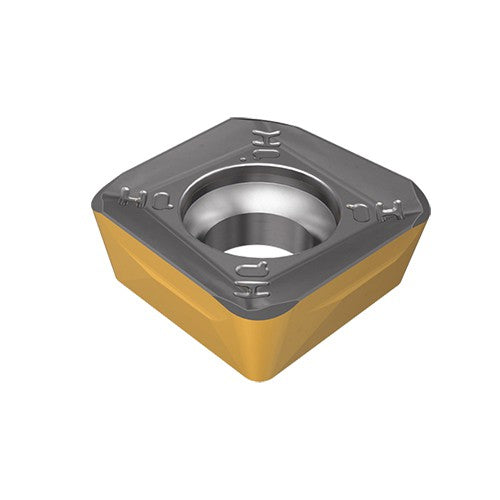

SPMT 100408TR-HQ-M IC950
Item #: EH5603697
Brand: Iscar
Model #: 5603697
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Cast Iron | |
| Shape | 90° Square |
| Application | | Drill Mill | Facing | Milling Inserts | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Insert Length (INSL) | 0.402″ |
| Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0315″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.315″ |
| Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.167″ |
| Minimum Feed per Tooth (fz(min)) | 0.0032 ″/tooth |
| Insert Included Angle (EPSR) | 90 Degrees |
| Measurement Type | Inch |
| Grade | IC950 |
| Body Material | Carbide |
