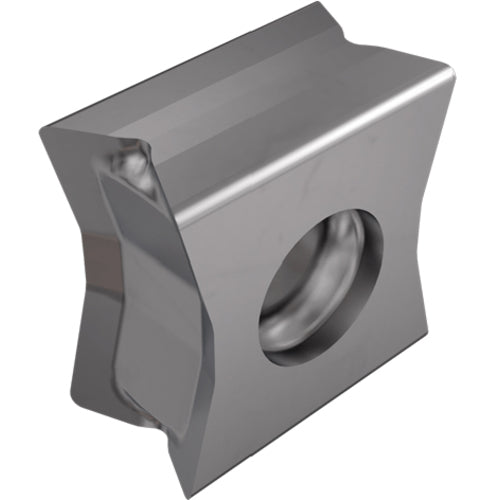

LNAR 1106 PN-N-P IC07
Item #: EH5603507
Brand: Iscar
Model #: 5603507
| Product Specifications | |
|---|---|
| Applicable Material | | Stainless Steel | Non Ferrous Metals | Hi Temp Alloys | |
| Grade | IC07 |
| Application | | Chamfering & Bottom Deburring | Facing | Milling Inserts | Shouldering | Side Slotting | Slotting | T Slotting | |
| Shape | 90° Rectangular |
| Insert Length (INSL) | 0.439″ |
| Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Corner Radius (RE) | 0.0197″ |
| Cutting Direction (HAND) | 4 Right + 4 Left |
| Depth of Cut Maximum (APMX) | 0.197″ |
| Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.236″ |
| Tool Type | Mill Tangential Inserts |
| Insert Thickness (S) | 0.422″ |
| Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Included Angle (EPSR) | 90 Degrees |
| Measurement Type | Inch |
| Coating | Uncoated |
| Body Material | Carbide |
