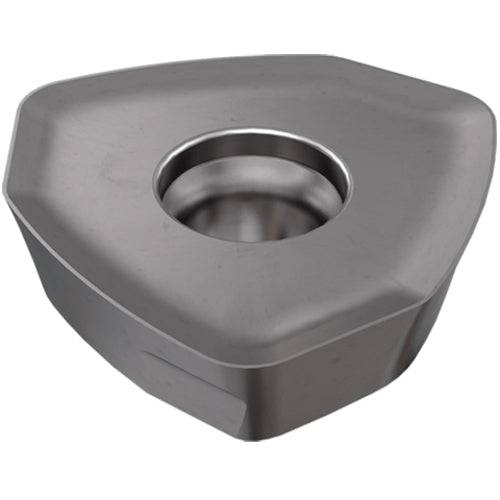

FF WOMT 09T320T IC910
Item #: EH5603326
Brand: Iscar
Model #: 5603326
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Cast Iron | |
| Shape | 80° Trigon |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Milling Inserts | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Insert Body Diameter (INSBD) | 0.366″ |
| Insert Length (INSL) | 0.417″ |
| Maximum Feed per Tooth (fz(max)) | 0.0787 ″/tooth |
| Corner Radius (RE) | 0.079″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.059″ |
| Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.156″ |
| Minimum Feed per Tooth (fz(min)) | 0.0276 ″/tooth |
| Coating | AlTiN |
| Measurement Type | Inch |
| Grade | IC910 |
| Body Material | Carbide |
