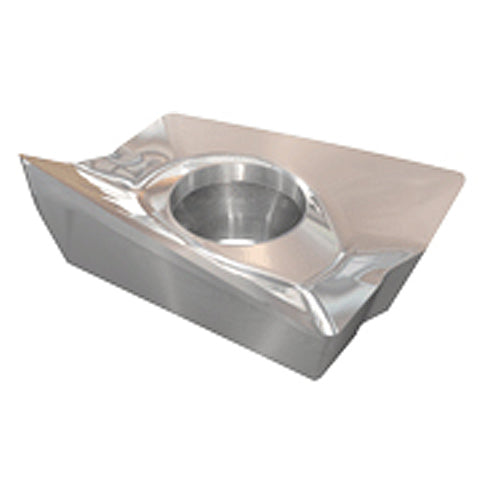

HM90 APCR 100304PDFR-P IC08
Item #: EH5602965
Brand: Iscar
Model #: 5602965
| Product Specifications | |
|---|---|
| Applicable Material | | Non Ferrous Metals | |
| Grade | IC08 |
| Application | | Countersinking | Drill Mill | Facing | Milling Inserts | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | |
| Shape | 85° Parallelogram |
| Cutting Edge Length (L) | 0.443″ |
| Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Insert Length (INSL) | 0.443″ |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0157″ |
| Tool Type | Mill AL, HTA Geometric Inserts |
| Depth of Cut Maximum (APMX) | 0.315″ |
| Minimum Feed per Tooth (fz(min)) | 0.0027 ″/tooth |
| Insert Width (W1) | 0.257″ |
| Cutting Edge Effective Length (LE) | 0.401″ |
| Insert Thickness (S) | 0.152″ |
| Measurement Type | Inch |
| Coating | Uncoated |
| Body Material | Carbide |
