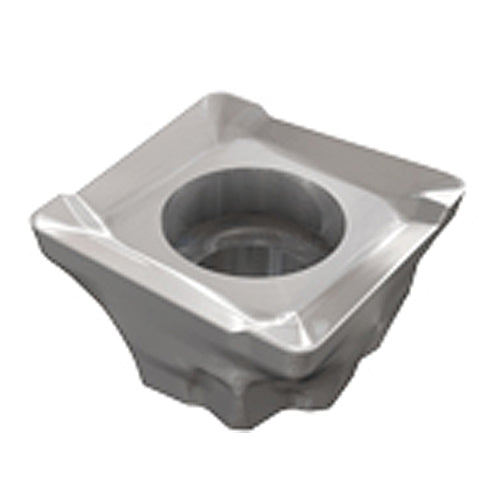

S90MT 1106PC-R
Item #: EH5602145
Brand: Iscar
Model #: 5602145
| Product Specifications | |
|---|---|
| Applicable Material | Steel|Stainless Steel|Cast Iron |
| Grade | IC4050 |
| Corner Radius (RE) | 0.031″ |
| Shape | 90° Square |
| Depth of Cut Maximum (APMX) | 0.343″ |
| Maximum Feed per Tooth (fz(max)) | 0.0059 inch/tooth |
| Inscribed Circle Diameter (IC) | 0.429″ |
| Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.236″ |
| Tool Type | Single sided Inserts |
| Wiper Edge Length (BS) | 0.051″ |
| Minimum Feed per Tooth (fz(min)) | 0.0031 inch/tooth |
| Coating | TiCN|Al2O3|TiN |
