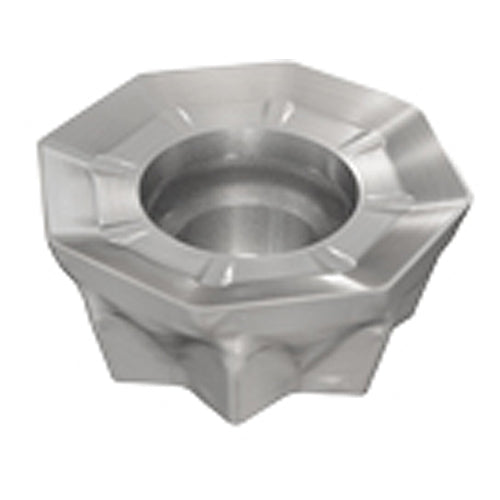

O45MT 050505-RM IC910
Item #: EH5602126
Brand: Iscar
Model #: 5602126
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Cast Iron | |
| Grade | IC910 |
| Application | | Bottom Shouldering | Facing | Milling Inserts | Rampdown | Shouldering | Side Slotting | Slanted Shoulder & Chamfer | Slotting | |
| Shape | 135° Octagon |
| Corner Radius (RE) | 0.0197″ |
| Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.13″ |
| Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.454″ |
| Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.197″ |
| Minimum Feed per Tooth (fz(min)) | 0.0067 ″/tooth |
| Insert Included Angle (EPSR) | 135 Degrees |
| Measurement Type | Inch |
| Coating | AlTiN |
| Body Material | Carbide |
