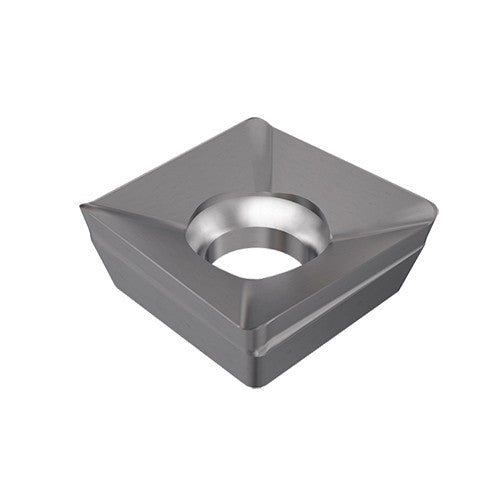

SOMT 060204TR-HQ IC910
Item #: EH5601933
Brand: Iscar
Model #: 5601933
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Cast Iron | |
| Grade | IC910 |
| Application | | Chamfering & Bottom Deburring | Counter Boring | Countersinking | Milling Inserts | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | |
| Shape | 90° Square |
| Insert Length (INSL) | 0.243″ |
| Maximum Feed per Tooth (fz(max)) | 0.0047 ″/tooth |
| Corner Radius (RE) | 0.0157″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.157″ |
| Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.101″ |
| Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Included Angle (EPSR) | 90 Degrees |
| Measurement Type | Inch |
| Coating | AlTiN |
| Body Material | Carbide |
