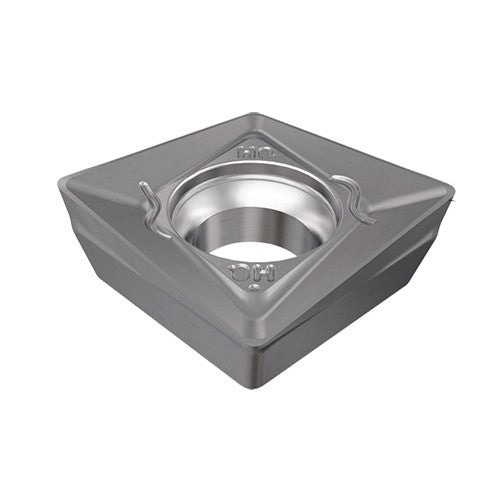

XPMT 100408-HQ IC520M
Item #: EH5601323
Brand: Iscar
Model #: 5601323
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Grade | IC520M |
| Application | | Bottom Shouldering | Facing | Milling Inserts | Rampdown | Shouldering | Side Slotting | Slotting | T Slotting | |
| Shape | Special |
| Insert Length (INSL) | 0.402″ |
| Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Corner Radius (RE) | 0.0236″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.315″ |
| Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.162″ |
| Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Included Angle (EPSR) | 90 Degrees |
| Measurement Type | Inch |
| Coating | TiCN |
| Body Material | Carbide |
