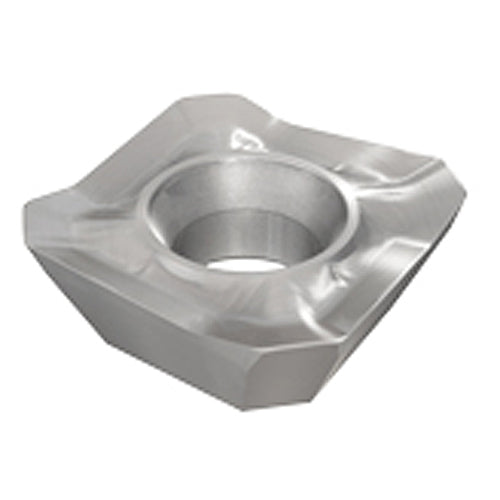

SEKT 43AFR-HM IC328
Item #: EH5601265
Brand: Iscar
Model #: 5601265
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Shape | 90° Square |
| Application | | Facing | Milling Inserts | Side Plunging | Slanted Shoulder & Chamfer | |
| Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Insert Length (INSL) | 0.508″ |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.252″ |
| Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.203″ |
| Tool Type | Single sided Inserts |
| Insert Included Angle (EPSR) | 90 Degrees |
| Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Coating | TiCN |
| Measurement Type | Inch |
| Grade | IC328 |
| Body Material | Carbide |
