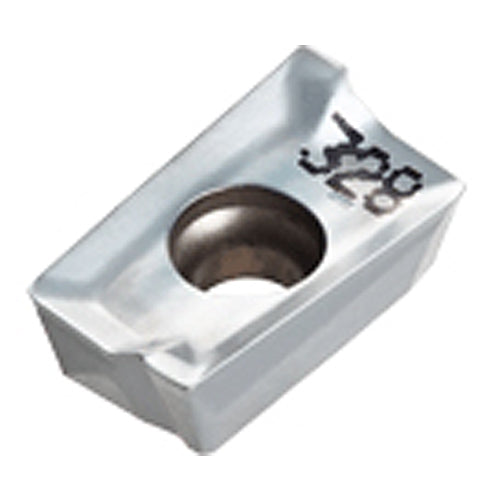

APKR 1604PDR-HM
Item #: EH5600606
Brand: Iscar
Model #: 5600606
| Product Specifications | |
|---|---|
| Applicable Material | Steel|Stainless Steel|Non-Ferrous Metals|Hi-Temp Alloys |
| Coating | Uncoated |
| Cutting Edge Length (L) | 17.58 mm |
| Grade | IC28 |
| Corner Radius (RE) | 0.8 mm |
| Shape | 85° Parallelogram |
| Depth of Cut Maximum (APMX) | 15.54 mm |
| Maximum Feed per Tooth (fz(max)) | 0.12 mm/tooth |
| Insert Width (W1) | 9.45 mm |
| Cutting Edge Material | Carbide |
| Insert Thickness (S) | 5.7 mm |
| Tool Type | Mill AL, HTA Geometric Inserts |
| Wiper Edge Length (BS) | 1.72 mm |
| Minimum Feed per Tooth (fz(min)) | 0.07 mm/tooth |
