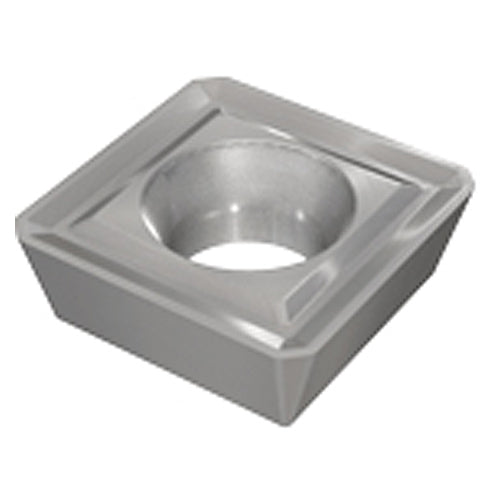

SDMT 32AD-N IC20
Item #: EH5600121
Brand: Iscar
Model #: 5600121
| Product Specifications | |
|---|---|
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Application | | Chamfering & Bottom Deburring | Countersinking | Milling Inserts | Slanted Shoulder & Chamfer | |
| Cutting Direction (HAND) | Right / Left |
| Insert Length (INSL) | 3/8″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.22″ |
| Tool Type | Single sided Inserts |
| Insert Thickness (S) | 1/8″ |
| Minimum Feed per Tooth (fz(min)) | 0.0047 ″/tooth |
| Insert Included Angle (EPSR) | 90 Degrees |
| Number of Cutting Edges | 4 |
| Coating | Uncoated |
| Measurement Type | Inch |
| Grade | IC20 |
| Body Material | Carbide |
| Shape | 90° Square |
