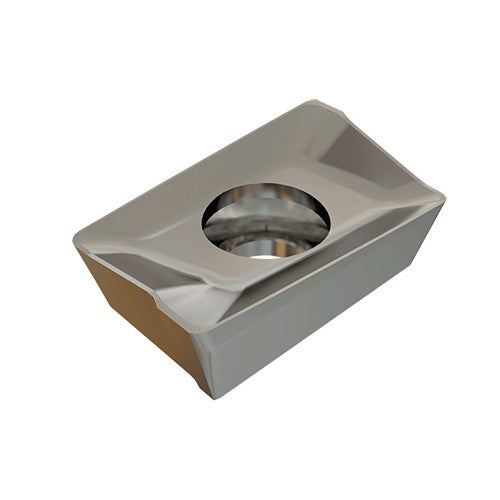

APKT 1003PDR-HM IC20

Item #: EH5600047
Brand: Iscar
Model #: 5600047

Product Specifications
Applicable Material	\| Stainless Steel \| Cast Iron \| Hard Materials \| Non Ferrous Metals \| Hi Temp Alloys \|
Grade	IC20
Application	\| Countersinking \| Drill Mill \| Facing \| Milling Inserts \| Plunging & Recessing \| Rampdown \| Shouldering \| Slanted Shoulder & Chamfer \| Slotting \|
Shape	85° Parallelogram
Cutting Edge Length (L)	0.431″
Maximum Feed per Tooth (fz(max))	0.0059 ″/tooth
Insert Length (INSL)	0.431″
Cutting Edge Material	Carbide
Corner Radius (RE)	0.0197″
Tool Type	Single sided Inserts
Depth of Cut Maximum (APMX)	0.315″
Minimum Feed per Tooth (fz(min))	0.0031 ″/tooth
Insert Width (W1)	0.264″
Cutting Edge Effective Length (LE)	0.396″
Insert Thickness (S)	0.14″
Measurement Type	Inch
Coating	Uncoated
Body Material	Carbide
