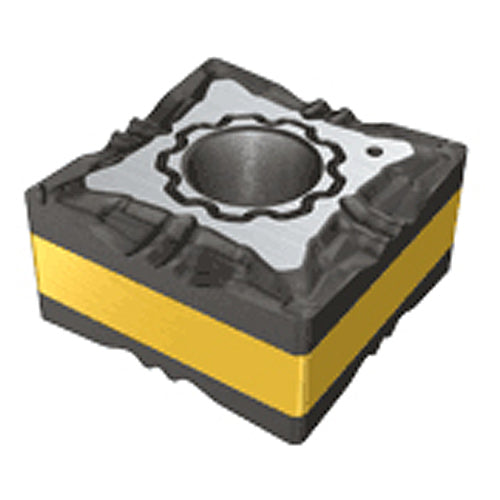

SNMG 332-F3P IC520N
Item #: EH5568463
Brand: Iscar
Model #: 5568463
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | |
| Grade | IC520N |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90° Square 75° Face Appr. | Ext. 90°Square 45°Face&Turn Ap | Insert | Int. Square 75° Approach | |
| Tool Type | Turn Negative Inserts |
| Insert Style | SNMG |
| Min D.O.C. | 0.035″ |
| Corner Radius (RE) | 0.0315″ |
| Depth of Cut Maximum (APMX) | 0.138″ |
| Insert Size | 332 |
| Min. Turning Feed (ft(min)) | 0.0031 ″/rev |
| Cutting Edge Length (L) | 3/8″ |
| Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Insert Thickness (S) | 0.187″ |
| Chip Breaker Type | F3P |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Measurement Type | Inch |
| Cutting Edge Material | Cermet |
| Shape | 90° Square |
| Coating | TiCN+TiN |
| Body Material | Carbide |
