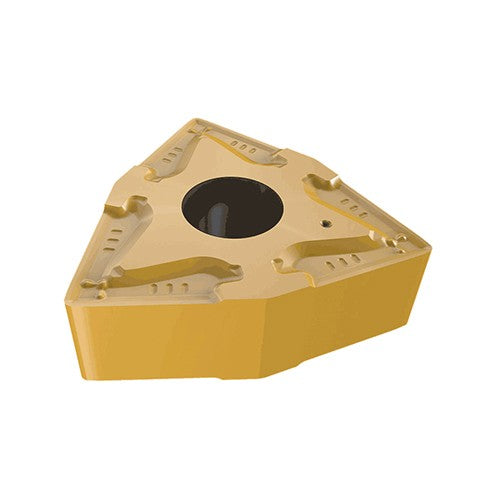

WNMG 3-0-FFC IC20N
Item #: EH556170104
Brand: Iscar
Model #: 6170104
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | |
| Grade | IC20N |
| Application | | Ext. 80° Trigon 95° Approach | Insert | Int. 80° Trigon 95° Approach | |
| Tool Type | Turn Negative Inserts |
| Insert Style | WNMG |
| Min D.O.C. | 0.039″ |
| Corner Radius (RE) | 0.0079″ |
| Depth of Cut Maximum (APMX) | 0.098″ |
| Insert Size | 3-0 |
| Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 0.257″ |
| Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Insert Thickness (S) | 0.156″ |
| Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Shape | 80° Trigon |
| Cutting Edge Material | Cermet |
| Body Material | Carbide |
| Coating | Uncoated |
