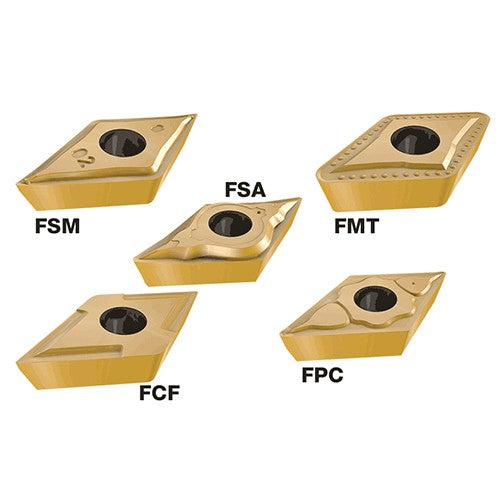

DCGT 3-0-FSA IC20N
Item #: EH556170094
Brand: Iscar
Model #: 6170094
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | |
| Tool Type | Turn Negative Inserts |
| Application | | Ext. 55° Diamond 107.5° Appr. | Insert | Int 55° Diamond 93 5° Approach | |
| Fixing Hole Diameter (D1) | 0.173″ |
| Insert Style | DCGT |
| Min D.O.C. | 0.012″ |
| Corner Radius (RE) | 0.0079″ |
| Depth of Cut Maximum (APMX) | 0.079″ |
| Insert Size | 3-0 |
| Min. Turning Feed (ft(min)) | 0.0008 ″/rev |
| Cutting Edge Length (L) | 0.457″ |
| Max. Turning Feed (ft(max)) | 0.0059 ″/rev |
| Insert Thickness (S) | 0.156″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Measurement Type | Inch |
| Cutting Edge Material | Cermet |
| Shape | 60° Triangle |
| Coating | Uncoated |
| Body Material | Carbide |
| Grade | IC20N |
