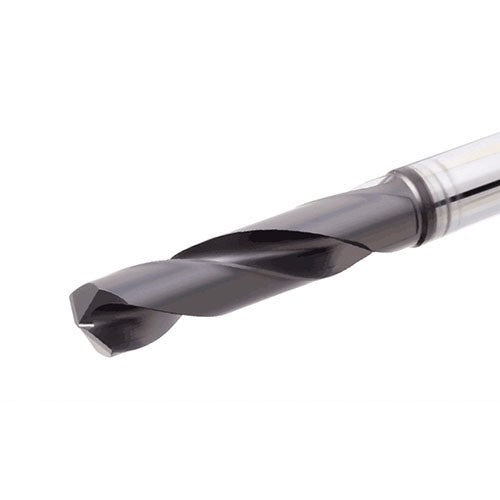

SCD 099-049-100 AP5N IC908
Item #: EH556154884
Brand: Iscar
Model #: 6154884
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 9.9 mm |
| Tool Type | Solid Carbide Drill |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 9.9 mm |
| Grade | IC908 |
| Coating | TiAlN |
| Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Usable Length (LU) | 49 mm |
| Application | | Drilling | |
| Length Chip Flute (LCF) | 61 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Overall Length (OAL) | 103 mm |
| Number of Teeth | 2 |
| Flute Count (NOF) | 2 |
| Shank Length (LS) | 40 mm |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
| Body Material | Carbide |
| Shape | Solid Carbide |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Cutting Edge Material | Carbide |
