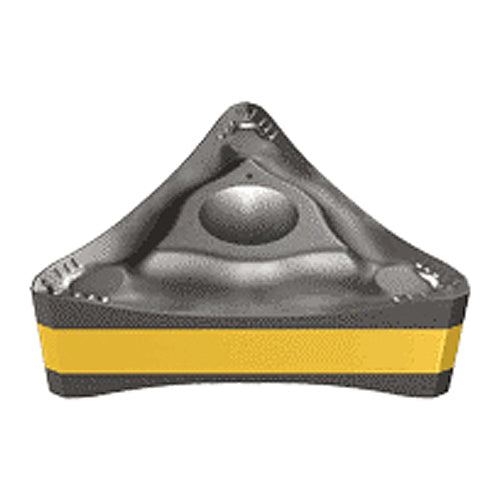

TNMX 342-M3PW IC8250
Item #: EH5560569
Brand: Iscar
Model #: 5560569
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | |
| Tool Type | Turn Negative Inserts |
| Application | | Ext. 60° Triangle 91° Approach | Insert | |
| Fixing Hole Diameter (D1) | 0.15″ |
| Insert Style | TNMX |
| Min D.O.C. | 0.098″ |
| Corner Radius (RE) | 0.0315″ |
| Depth of Cut Maximum (APMX) | 0.217″ |
| Insert Size | 342 |
| Min. Turning Feed (ft(min)) | 0.0118 ″/rev |
| Cutting Edge Length (L) | 0.65″ |
| Max. Turning Feed (ft(max)) | 0.0197 ″/rev |
| Insert Thickness (S) | 0.173″ |
| Chip Breaker Type | HTW |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Shape | 60° Triangle |
| Coating | TiCN+Al2O3+TiN |
| Series/List # | TNMX 342-HTW |
| Grade | IC8250 |
| Body Material | Carbide |
